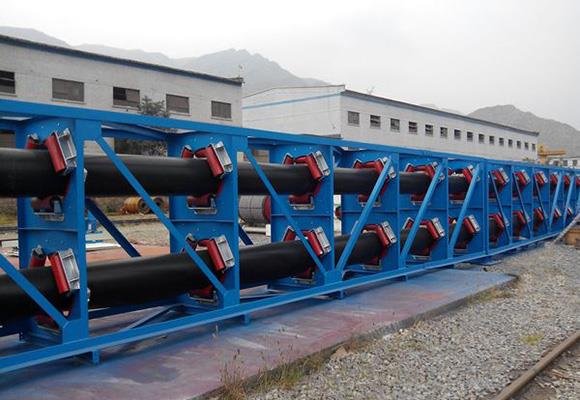

Transporteurs Belt Tube
Deskripsyon
Kòm yon kalite anviwònman-zanmitay ekipman transpò kontinyèl, se sikilè senti transporteurs a pwensipalman te itilize pou transpòte chabon, chabon kolye, coke, materyèl melanje, sintered minrè, poud mineral, petwòl coke, kalkè, sab-gravye total, asidilen depo, imidite pousyè tè, angrè chimik, sèl, papye dechè, fosfò jips, salop souf-fè ak tout kalite materyèl esansyèl. Transmetè senti sikilè tib la gen prensip la menm k ap travay ak CONVEYOR senti a òdinè; savwa, fè pou sèvi ak friksyon pou avanse pou pi senti a CONVEYOR ak materyèl li yo. Pifò nan eleman ka souvan itilize ak CONVEYOR senti òdinè a, sepandan, diferans lan se ke senti a CONVEYOR dwe woule moute nan fòm nan tib sikilè.
Prensip ak Estrikti nan Sikilè senti transporteur Tib:
1. pò egzeyat komen
2. pò charje
3. Tranzisyon seksyon materyèl k ap resevwa yo
4. Espesyal tib kasèt
5. Tranzisyon seksyon nan materyèl dechaje
6. Transmisyon Woulo
Lè senti transporteurs a te resevwa materyèl yo nan seksyon tranzisyon an sou ke li yo, yo pral senti CONVEYOR a monte nan fòm tib sikilè piti piti, lè sa a, yo pral aplike kasèt tib sikilè pou transpòte materyèl yo nan fason ki sele, y ap dewoule senti a piti piti lè materyèl yo transpòte nan seksyon tranzisyon an jiskaske materyèl yo ranvwaye.
Karakteristik yo
1. Li ka sele ak transpòte materyèl yo esansyèl.
2. Li ka fè aranjman pou woutin transpò yo nan fason chofè espas.
3. Li ka amelyore ang inclinasyon transpò a.
4. Pa gen fenomèn off-tracking.
5. Li ka transpòte materyèl nan de direksyon yo.
Espesifikasyon
Dyamèt tib | Band lajè | Bandepeed (m / s) | |||||||
0.5 | 0.63 | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | ||
Φ100 | 360 | 10.6 | 13.4 | 17 | 21.2 | 26.5 | 33.9 | 42.4 | 53 |
Φ150 | 550 | 23.9 | 30.1 | 38.2 | 47.7 | 59.6 | 76.3 | 95.4 | 119.3 |
Φ200 | 730 | 42.4 | 53.4 | 67.9 | 84.8 | 106 | 135.7 | 169.6 | 212.1 |
Φ250 | 910 | 66.3 | 83.5 | 106 | 132.5 | 165.7 | 212.1 | 265.1 | 331.3 |
Φ300 | 1100 | 95.4 | 120.2 | 152.7 | 190.9 | 238.6 | 305.4 | 381.7 | 477.1 |
Φ350 | 1280 | 129.9 | 163.7 | 207.8 | 259.8 | 324.7 | 415.6 | 519.5 | 649.4 |
Φ400 | 1460 | 169.6 | 213.8 | 271.4 | 339.3 | 424.1 | 542.9 | 678.6 | 848.2 |
Φ450 | 1640 | 214.7 | 270.5 | 343.5 | 429.4 | 536.8 | 687.1 | 858.8 | 1073.5 |
Φ500 | 1820 | 265.1 | 334 | 424.1 | 530.1 | 662.7 | 848.2 | 1060.3 | 1325.4 |
Φ560 | 2050 | 332.5 | 419 | 532 | 665 | 831.3 | 1064 | 1330 | 1662.5 |
Φ600 | 2190 | 381.7 | 480.9 | 610.7 | 763.4 | 954.3 | 1221.5 | 1526.8 | 1908.5 |
Φ630 | 2300 | 420.8 | 530.2 | 673.3 | 841.7 | 1052.1 | 1346.6 | 1683.3 | 2104.1 |
Φ700 | 2550 | 519.5 | 654.6 | 831.3 | 1039.1 | 1298.9 | 1662.5 | 2078.2 | 2597.7 |
Φ800 | 2900 | 678.6 | 855 | 1085.7 | 1357.2 | 1696.5 | 2171.5 | 2714.3 | 3392.9 |
Φ850 | 3100 | 766.1 | 965.2 | 1225.7 | 1532.1 | 1915.1 | 2451.4 | 3064.2 | 3830.3 |
Dyamèt tib (mm) | Band lajè | Bandepeed (m / s) | |||||||
3.15 | 3.55 | 4 | 4.5 | 5 | 5.6 | 6.3 | 7.1 | ||
Φ100 | 360 | 66.8 | 75.3 | 84.8 | 95.4 | 106 | 118.8 | 133.6 | 150.6 |
Φ150 | 550 | 150.3 | 169.4 | 190.9 | 214.7 | 238.6 | 267.2 | 300.6 | 338.8 |
Φ200 | 730 | 267.2 | 301.1 | 339.3 | 381.7 | 424.1 | 475 | 534.4 | 602.2 |
Φ250 | 910 | 417.5 | 470.5 | 530.1 | 596.4 | 662.7 | 742.2 | 835 | 941 |
Φ300 | 1100 | 610.2 | 677.5 | 763.4 | 858.8 | 954.3 | 1068.8 | 1202.4 | 1355 |
Φ350 | 1280 | 818.3 | 922.2 | 1039.1 | 1169 | 1298.9 | 1454.7 | 1636.6 | 1844.4 |
Φ400 | 1460 | 1068.8 | 1204.5 | 1357.2 | 1526.8 | 1696.5 | 1900 | 2137.5 | 2409 |
Φ450 | 1640 | 1352.7 | 1524.4 | 1717.7 | 1932.4 | 2147.1 | 2404.7 | 2705.3 | 3048.9 |
Φ500 | 1820 | 1670 | 1882 | 2120.6 | 2385.6 | 2650.7 | 2968.8 | 3339.9 | 3764 |
Φ560 | 2050 | 2094.8 | 2360.8 | 2660 | 2992.6 | 3325.1 | 3724.1 | 4189.6 | 4721.6 |
Φ600 | 2190 | 2404.7 | 2710.1 | 3053.6 | 3435.3 | 3817 | 4275.1 | 4809.5 | 5420.2 |
Φ630 | 2300 | 2651.2 | 2987.9 | 3366.6 | 3787.5 | 4208.3 | 4713.3 | 5302.4 | 5975.8 |
Φ700 | 2550 | 3273.1 | 3688.7 | 4156.3 | 4675.9 | 5195.4 | 5818.9 | 6546.2 | 7377.5 |
Φ800 | 2900 | 4275.1 | 4817.9 | 5428.7 | 6107.3 | 6785.8 | 7600.1 | 8550.2 | 9635.9 |
Φ850 | 3100 | 4826.2 | 5439 | 6128.5 | 6894.5 | 7660.6 | 8579.8 | 9652.3 | 10878 |
