Kapasite jiska 16 Tòn Single Girder Anlè Teknik
- May 03, 2018 -

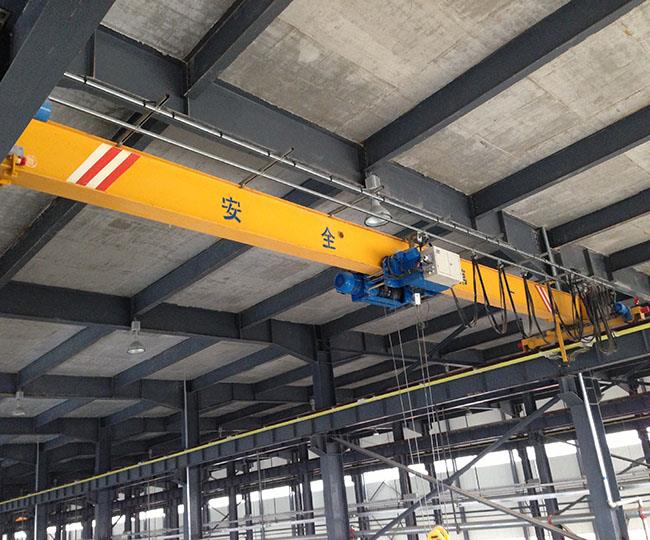

Debaz Info timg.jpg


Non: Kapasite jiska 16 Tòn Single Girder Anlè Teknik

Modèl NON: LD

Lejè Wotè: jiska 20m

Devwa Gwoup: A3-A5

Kontwòl Metòd: Pendent / Wireless

Aplikasyon: Itilizasyon Konstriksyon, Itilizasyon Itilizasyon, Mineral Zòn Itilizasyon

Kalite fistibal: Fil kòd

Sous pouvwa: Elektrik

Kalite deplase: rou

Enstalasyon: reyini

Gwo fò won teknik Kalite: Anlè tap vwayaje teknik

Pake transpò: Bwat an bwa

Spesifikasyon: Kapasite: 2-10T, Span: 5-30M

Orijin: Henan, Lachin


Deskripsyon Product


Pati 1: Deskripsyon

LD di ki kalite grenn kreyon sèl anjeneral konpoze de yon konstriksyon giran sèl. Sa yo ka konstwi ak travès asye oswa plis rijid soude kalite brwayeur bwat. Single Girder trepye se pi plis tipik lè leve kapasite mwens pase 20T. LD Single Gadyen Cranes anlè yo lajman ki itilize nan jaden endistriyèl nou an. Li se aplike nan plant asye, Plant idroleur, Depo, Atelye, Liy Pwodiksyon, Antretyen Shop, Transpòtasyon materyèl, Ekipman Asanble Shop elatriye Nou gen Comprehensive ekipman estanda ak pakèt Pwodwi pou kostim kondisyon endividyèl elèv yo.


Pati 2: Konfigirasyon detaye:

1- Lifting Mekanis
- Monorail fil elektrik anlè oswa chèn anpwazèl kòm opsyon:-vitès ki gen kapasite: sèl oswa doub tankou pou chak
- Trolley vitès: Single oswa Doub oswa etap mwens jan yo chak
- Segondè pèfòmans ak pri ki pi ékonomi

2-Fen Kari
-woulèt soude bwat kalite kous fen
- Modil konsepsyon
-kòn ekirèy kaj motè oswa motè kòmanse mou kòm opsyon
- Vwayaje vitès: Single oswa Doub oswa etap mwens jan yo chak

3-Main Girder
- Rijid soude bous girder oswa solid asye seksyon kre
- Modil konsepsyon
- Fè nan asye Q235 oswa Q345
- Pwopoze defleksyon ≤1 / 750 nan span

4-Kontwòl
-Pandan kontwòl kontwòl pendan sou C-tras
-wa san kontwòl kòm opsyon
-wa kontwòl kabinè kòm opsyon

5-elektrik Pati
-Kondiktè pouvwa ekipman pou (kòm opsyon)
- Panno kontwòl yo IP54 oswa IP44 depann de travay anbyen.
-Yon eleman yo pozisyone nan yon fason antretyen zanmitay, ak Layout an antye bay ak pwoteksyon bon
-Fè câbles yo sispann sou kab saddles, fiks kab kab, kouri nan yon C-tras galvanised.
-Main pati elektrik nan mak Schneider ou Siemens

6-Penti
-korozyon pwoteksyon nan retire rouye pa mekanik tire eksplozif SA 2.5
-Premye kouch kouch epoksidik 30 mikron
-Kou kouch kouch epoksidik 30 mikron
-Tèk kouch nan kouch nan 40 mikron an poliyiretàn
- Epesè: apeprè 100 mikron
-Koulè: jòn oswa Orange kòm kondisyon pou chak

7-Safe Pwoteksyon
-Entwodiksyon-Off switch
-overload pwoteje
-earth pwoteksyon
-cross vwayaj ak pwoteksyon vwayaj long
-lifting pwoteksyon vwayaje
-Overyaj pwoteksyon nan motè

Pati 3: Trase ak Done teknik


Kapasite (t) span (m) total pwa (G) max chay wou (kN) chay wou min (kN) H1 H2 H3 W B C1 C2
1 7.5 1.67 8.9 3.9 490 910 550 2000 2500 796 1274
8 1.72 9.1 4.0
8.5 1.77 9.2 4.1
9 1.81 9.4 4.3
9.5 1.86 9.5 4.4
10 1.91 9.7 4.5
10.5 1.96 9.8 4.6
11 1.95 9.8 4.6
11.5 2.00 10.0 4.7
12 2.05 10.1 4.8
12.5 2.09 10.2 4.9
13 2.14 10.4 5.0
13.5 2.19 10.5 5.2
14 2.24 10.6 5.3
14.5 2.43 11.1 5.8 955 595 2500 3000
15 2.48 11.3 5.9
15.5 2.53 11.4 6.0
16 2.58 11.5 6.1
16.5 2.63 11.7 6.3
17 2.66 11.7 6.3
17.5 2.85 12.2 6.8 530 970 650
18 2.90 12.4 6.9
18.5 2.96 12.5 7.1
19 3.01 12.7 7.2
19.5 3.02 12.7 7.2
20 3.20 13.1 7.7 580 700 3000 3500
20.5 3.26 13.3 7.8
21 3.32 13.4 8.0
21.5 3.37 13.6 8.1
22 3.43 13.7 8.2
22.5 3.49 13.9 8.4
23 4.07 15.3 9.8 660 990 800 3500 4000
23.5 4.13 15.5 10.0
24 4.20 15.7 10.2
24.5 4.26 15.8 10.3
25 4.32 16.0 10.5
25.5 4.39 16.2 10.6
26 5.35 18.6 13.0 745 1010 900 4000 4500
26.5 5.43 18.8 13.2
27 5.52 19.0 13.5
27.5 5.60 19.2 13.7
28 5.68 19.4 13.9
28.5 5.76 19.6 14.1
Kapasite (t) span (m) total pwa (G) max chay wou (kN) chay wou min (kN) H1 H2 H3 W B C1 C2
2 7.5 1.79 13.8 4.1 490 1080 550 2000 2500 871 1274
8 1.84 14.0 4.2
8.5 1.88 14.1 4.3
9 1.93 14.3 4.4
9.5 1.98 14.5 4.5
10 2.03 14.7 4.6
10.5 2.07 14.8 4.7
11 2.12 15.0 4.8
11.5 2.25 15.4 5.1 1125 595
12 2.30 15.5 5.3
12.5 2.35 15.7 5.4
13 2.40 15.8 5.5
13.5 2.45 16.0 5.6
14 2.50 16.1 5.8
14.5 2.62 16.5 6.1 580 1140 700 2500 3000
15 2.68 16.6 6.2
15.5 2.74 16.8 6.3
16 2.79 17.0 6.5
16.5 2.85 17.1 6.6
17 2.91 17.3 6.8
17.5 3.23 18.1 7.6 660 1160 800
18 3.30 18.3 7.7
18.5 3.36 18.5 7.9
19 3.42 18.6 8.0
19.5 3.49 18.8 8.2
20 4.09 20.3 9.7 785 1135 900 3000 3500
20.5 4.17 20.5 9.9
21 4.24 20.7 10.1
21.5 4.32 20.9 10.3
22 4.40 21.1 10.5
22.5 4.47 21.3 10.7
23 5.31 23.4 12.7 820 1200 1000 3500 4000
23.5 5.40 23.7 13.0
24 5.49 23.9 13.2
24.5 5.57 24.1 13.4
25 5.66 24.3 13.6
25.5 5.75 24.6 13.8
26 6.40 26.2 15.5 875 1250 1100 4000 4500
26.5 6.50 26.5 15.7
27 6.60 26.7 16.0
27.5 6.69 27.0 16.2
28 6.79 27.2 16.4
28.5 6.89 27.5 16.7
Kapasite (t) span (m) total pwa (G) max chay wou (kN) chay wou min (kN) H1 H2 H3 W B C1 C2
3 7.5 1.93 18.9 4.2 530 1255 650 2000 2500 818.5 1291
8 1.98 19.1 4.3
8.5 2.03 19.4 4.4
9 2.09 19.6 4.5
9.5 2.14 19.8 4.7
10 2.20 20.0 4.8
10.5 2.25 20.2 4.9
11 2.31 20.4 5.0
11.5 2.41 20.7 5.3 580 700
12 2.47 20.9 5.4
12.5 2.53 21.1 5.6
13 2.59 21.3 5.7
13.5 2.64 21.5 5.9
14 2.70 21.7 6.0
14.5 3.02 22.5 6.8 660 1275 800 2500 3000
15 3.08 22.7 6.9
15.5 3.14 22.9 7.1
16 3.21 23.1 7.2
16.5 3.27 23.2 7.4
17 3.34 23.4 7.6
17.5 3.84 24.7 8.8 745 1290 900
18 3.91 24.9 9.0
18.5 3.99 25.1 9.2
19 4.06 25.3 9.4
19.5 4.14 25.5 9.6
20 4.92 27.5 11.5 820 1315 1100 3000 3500
20.5 5.01 27.7 11.7
21 5.09 28.0 11.9
21.5 5.18 28.2 12.2
22 5.27 28.4 12.4
22.5 5.36 28.7 12.6
23 5.71 29.6 13.5 875 1360 3500 4000
23.5 5.80 29.8 13.7
24 5.89 30.0 13.9
24.5 5.99 30.3 14.2
25 6.08 30.5 14.4
25.5 6.17 30.8 14.6
26 7.97 35.3 19.1 925 1660 1200 4000 4500
26.5 8.09 35.6 19.4
27 8.22 35.9 19.7
27.5 8.34 36.2 20.0
28 8.46 36.6 20.3
28.5 8.59 36.9 20.7
Kapasite (t) span (m) total pwa (G) max chay wou (kN) chay wou min (kN) H1 H2 H3 W B C1 C2
5 7.5 2.20 28.7 4.6 580 1460 720 2000 2500 841.5 1310
8 2.27 29.0 4.7
8.5 2.33 29.3 4.9
9 2.40 29.7 5.0
9.5 2.46 30.0 5.2
10 2.53 30.2 5.3
10.5 2.59 30.5 5.5
11 2.66 30.8 5.6
11.5 2.91 31.5 6.3 660 800
12 2.98 31.8 6.4
12.5 3.05 32.0 6.6
13 3.12 32.3 6.8
13.5 3.20 32.5 6.9
14 3.27 32.8 7.1
14.5 3.52 33.5 7.7 745 1540 900 2500 3000
15 3.60 33.7 7.9
15.5 3.68 33.9 8.1
16 3.75 34.2 8.3
16.5 3.83 34.4 8.5
17 3.90 34.6 8.7
17.5 4.41 35.9 9.9 820 1500 1000
18 4.50 36.2 10.2
18.5 4.59 36.5 10.4
19 4.68 36.7 10.6
19.5 4.76 37.0 10.8
20 5.23 38.2 12.0 875 1545 1100 3000 3500
20.5 5.33 38.4 12.2
21 5.42 38.7 12.4
21.5 5.51 38.9 12.7
22 5.60 39.2 12.9
22.5 5.70 39.5 13.1
23 7.08 42.9 16.6 925 1595 1200 3500 4000
23.5 7.20 43.2 16.9
24 7.32 43.6 17.2
24.5 7.43 43.9 17.4
25 7.55 44.2 17.7
25.5 7.67 44.5 18.0
26 9.01 47.9 21.4 1015 1670 1300 4000 4500
26.5 9.16 48.3 21.7
27 9.30 48.6 22.1
27.5 9.44 49.0 22.5
28 9.58 49.4 22.8
28.5 9.72 49.7 23.2
Kapasite (t) span (m) total pwa (G) max chay wou (kN) chay wou min (kN) H1 H2 H3 W B C1 C2
10 7.5 3.26 51.3 6.1 720 1850 900 2000 2500 1293 1893
8 3.34 52.1 6.3
8.5 3.43 52.9 6.5
9 3.51 53.5 6.6
9.5 3.59 54.2 6.8
10 3.67 54.8 7.0
10.5 3.76 55.3 7.2
11 3.84 55.8 7.3
11.5 4.05 56.6 7.9 820 1850 1000
12 4.14 57.1 8.1
12.5 4.22 57.6 8.3
13 4.31 58.0 8.5
13.5 4.40 58.4 8.7
14 4.49 58.8 8.9
14.5 4.80 59.8 9.6 875 1900 1100 2500 3000
15 4.89 60.2 9.8
15.5 4.98 60.6 10.1
16 5.07 60.9 10.3
16.5 5.17 61.3 10.5
17 5.26 61.7 10.7
17.5 5.53 62.5 11.4 1940 1140
18 5.63 62.8 11.6
18.5 5.73 63.2 11.9
19 5.83 63.5 12.1
19.5 5.92 63.9 12.3
20 6.89 66.4 14.8 925 2000 1250 3000 3500
20.5 7.01 66.8 15.0
21 7.12 67.1 15.3
21.5 7.24 67.5 15.6
22 7.36 67.9 15.9
22.5 7.48 68.2 16.2
23 8.96 72 19.9 1100 1920 1350 3500 4000
23.5 9.11 72.5 20.3
24 9.26 72.9 20.6
24.5 9.41 73.3 21.0
25 9.56 73.8 21.4
25.5 9.71 74.2 21.7
26 13.09 82.7 30.2 1200 1450 4000 4700
26.5 13.29 83.3 30.7
27 13.48 83.8 31.2
27.5 13.67 84.3 31.6
28 13.86 84.8 32.1
28.5 14.05 85.4 32.6
Kapasite (t) span (m) total pwa (G) max chay wou (kN) chay wou min (kN) H1 H2 H3 W B C1 C2
16 7.5 3.64 77.2 7.0 820 2480 1000 2000 2500 1293 1893
8 3.74 78.3 7.2
8.5 3.84 79.4 7.4
9 3.94 80.4 7.6
9.5 4.04 81.3 7.9
10 4.14 82.1 8.1
10.5 4.24 82.9 8.3
11 4.34 83.6 8.5
11.5 4.55 84.6 9.0 875 2525 1100
12 4.66 85.2 9.3
12.5 4.76 85.9 9.5
13 4.87 86.5 9.8
13.5 4.97 87.1 10.0
14 5.08 87.6 10.3
14.5 5.93 90.0 12.4 975 1200 2500 3000
15 6.06 90.6 12.7
15.5 6.18 91.1 13.0
16 6.31 91.7 13.3
16.5 6.43 92.2 13.6
17 6.56 92.7 13.9
17.5 7.19 94.5 15.5 1075 1300
18 7.33 95.0 15.8
18.5 7.47 95.5 16.1
19 7.61 96.0 16.5
19.5 7.75 96.5 16.8
20 8.56 98.7 18.9 1130 2570 1400 3000 3500
20.5 8.72 99.2 19.2
21 8.87 99.7 19.6
21.5 9.03 100.2 20.0
22 9.18 100.8 20.4
22.5 9.34 101.3 20.8
23 12.41 109.0 28.4 1280 1550 3500 4000
23.5 12.61 109.6 28.9
24 12.81 110.2 29.4
24.5 13.02 110.9 30.0
25 13.22 111.5 30.5
25.5 13.43 112.0 31.0
26 14.34 114.4 33.2 1300 2600 1600 4000 4700
26.5 14.55 115.0 33.8
27 14.77 115.6 34.3
27.5 14.98 116.3 34.8
28 15.20 116.9 35.4
28.5 15.42 117.5 35.9
Kapasite (t) span (m) total pwa (G) max chay wou (kN) chay wou min (kN) H1 H2 H3 W B C1 C2
20 7.5 5.45 97.9 10.2 900 2450 1050 2000 2700 1394 1933
8 5.58 99.5 10.5
8.5 5.70 101.0 10.7
9 5.83 102.3 11.0
9.5 5.96 103.5 11.3
10 6.09 104.6 11.6
10.5 6.22 105.7 11.8
11 6.35 106.6 12.1
11.5 6.99 108.8 13.7 970 2480 1150
12 7.15 109.8 14.0
12.5 7.30 110.7 14.4
13 7.45 111.5 14.7
13.5 7.60 112.3 15.1
14 7.76 113.1 15.5
14.5 8.67 115.8 17.7 1050 2530 1280 2500 3200
15 8.85 116.6 18.1
15.5 9.02 117.3 18.6
16 9.20 118.1 19.0
16.5 9.37 118.8 19.4
17 9.55 119.5 19.8
17.5 10.50 122.2 22.2 1130 2560 1390
18 10.70 122.9 22.7
18.5 10.89 123.6 23.1
19 11.09 124.3 23.6
19.5 11.28 125.0 24.1
20 12.02 127.0 25.9 1200 2600 1500 3000 3700
20.5 12.23 127.7 26.4
21 12.44 128.4 26.9
21.5 12.64 129.1 27.4
22 12.85 129.8 27.9
22.5 12.96 130.5 28.5
23 13.88 132.7 30.5 1300 1600 3500 4200
23.5 14.10 133.4 31.0
24 14.31 134.0 31.6
24.5 14.52 134.78 32.1
25 14.74 135.4 32.6
25.5 14.96 135.6 33.1
